Lotos 2in LED Multiples 1-Light Adjustable Recessed Light 3000K Warm White 6W 530 Lumens IC-Rated Airtight 120V-277V Universal in White

Brand: WAC Lighting

Color: White

Features:

• CONSTRUCTION: Die-cast aluminum with 20-gauge steel driver box. Lotos Multiples is available in a two or three light remodel housing that is both IC-Rated and Airtight.
• INSTALLATION: This innovative design can be installed in the shallowest ceiling depths with less than 2" of plenum space required. Male-to-female quick connect locking cable joins the light engine to the driver box. Driver box includes 5 knockouts allowing for an easy electrical connection.

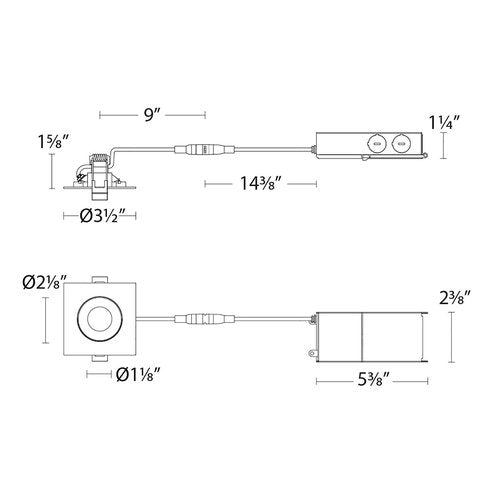

• CUTOUT: 1-light installs into 2.75in cutout, 2-light installs into 6.25in x 2.75in cutout, and 3-light installs into 9.75in x 2.75in cutout. Can be used on ceiling thicknesses between 0.5in and 1.5in. Trim has retention clips that hold the light engine into the ceiling with a flange that covers the cutout. Universal input driver 120V-220V-277V.
• DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer. Dims down 10% with ELV dimmers, and 5% with TRIAC dimmers.
• SPECIFICATIONS: High Powered LED Module, Power: 6W, Delivered Lumens: 530lm, CRI: 90, Rated Hours: 50000, Color Temp: 3000K Warm White.
• STANDARDS: ETL & cETL UL # 1598 listed for Dry, Damp, and Wet Locations. Airtight and IC-Rated for contact with insulation. CEC Title 24 Compliant. Energy Star 2.0 Certified, and Title 24 JA8-2016. Model # R4ERA2R-W9CS-FWT is Fire Rated for 2-hr burn test.

Binding: Tools & Home Improvement

model number: R2ESAR-W930-WT

Part Number: R2ESAR-W930-WT

Details: The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.

EAN: 0790576818092

Package Dimensions: 10.7 x 6.5 x 4.1 inches
