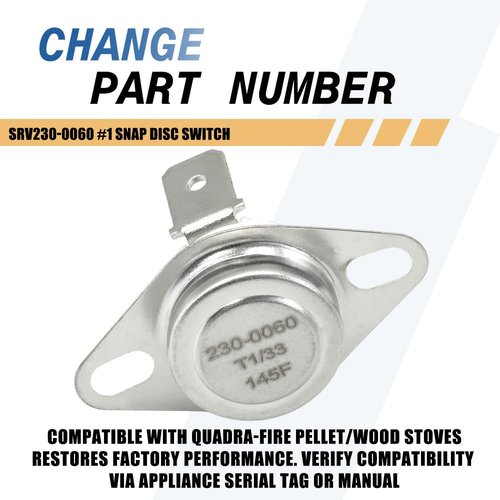

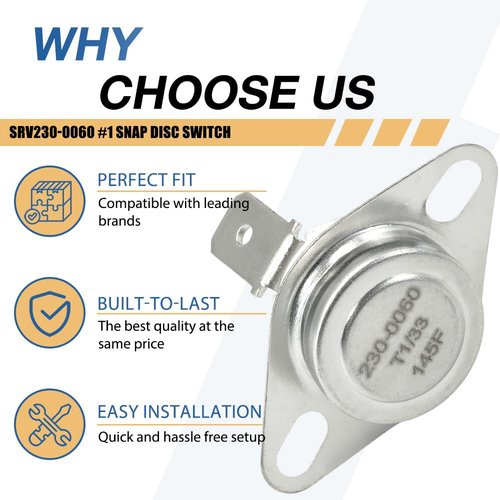

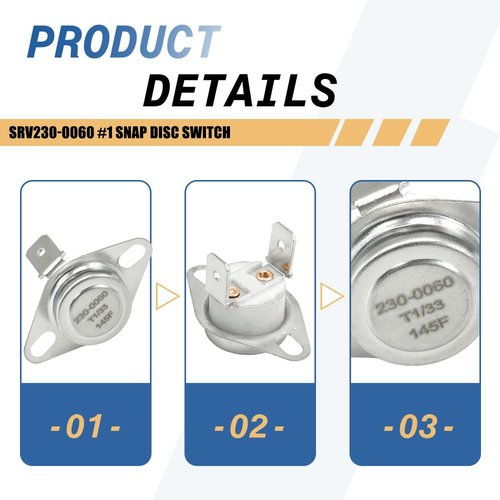

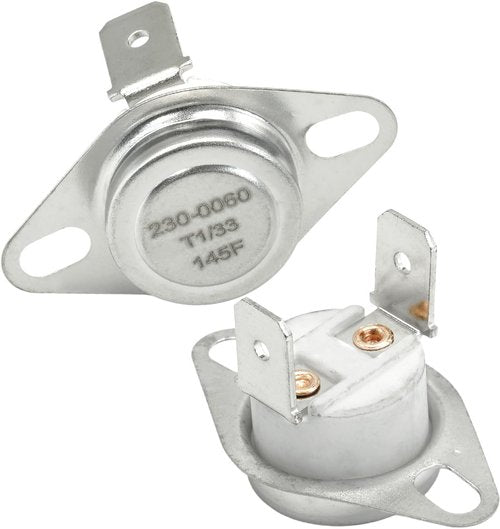

2-Pack SRV230-0060#1 Snap Disc Switch - 145°F Convection Blower Sensor Compatible with Quadra-Fire Pellet/Wood Stoves Replaces 812-0320

Brand: HAINEAO

Color: white

Features:

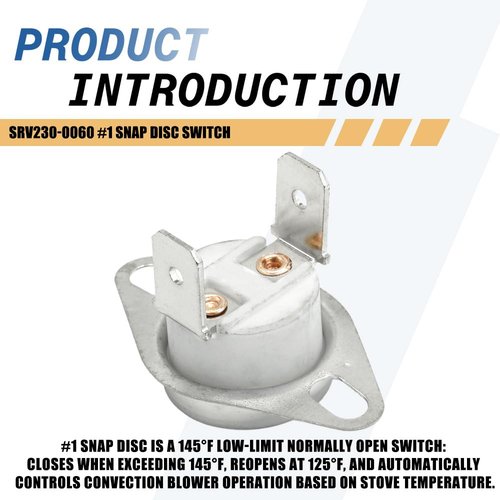

• Core Temperature Specifications：This #1 Snap Disc operates as a 145°F low limit switch (145°F-20°F). Normally open, it closes when temperature exceeds 145°F and reopens at 125°F, automatically controlling convection blower operation based on stove temperature
• Convection Blower Control Function：Enables the convection blower to turn on once the stove reaches 145°F, supporting efficient heat distribution. Shuts off the blower when cooling to 125°F to align with optimal stove operation
• Model Compatibility：Compatible with Quadra-Fire Pellet Stoves (1000, 1200 Freestanding); CB1200 variations (CB1200M-MBK, CB1200-B); and Wood Stoves (5100i/51I-ACC)
• Replacement Indicator：Recommended for replacement when the convection blower fails to turn on or off automatically, helping restore proper stove functionality
• Installation Note：Designed for direct fitment in compatible models. Consult your stove’s owner’s manual to confirm part number compatibility before installation

model number: SRV230-0060

Part Number: SRV230-0060

Details: The SRV230-0060 #1 Snap Disc is a temperature-sensitive sensor designed to control convection blower operation in select Quadra-Fire pellet and wood stoves.
How It Works：
This snap disc functions as a temperature-activated switch: normally open during startup, it closes when the stove reaches 145°F to activate the convection blower, facilitating heat distribution. As the stove cools to 125°F (20°F differential), it reopens to shut off the blower—supporting efficient, temperature-based operation.
Compatible Models：
Compatible with Quadra-Fire Pellet Stoves: 1000, 1200 Freestanding
Compatible with Quadra-Fire CB1200 Variants: CB1200M-MBK, CB1200-B
Compatible with Quadra-Fire Wood Stoves: 5100i (51I-ACC)
When to Replace：
If your stove’s convection blower fails to turn on/off automatically with temperature changes, this snap disc may need replacement. A properly functioning sensor ensures the blower operates only when needed, supporting efficient heating performance.
Important Note：
Always consult your stove’s owner’s manual to verify part number compatibility with your specific model before purchasing. This switch is designed for direct installation in compatible units, requiring no modifications when used with the listed models.
The SRV230-0060 #1 Snap Disc helps maintain proper convection blower operation, contributing to consistent heat distribution and optimal stove performance.

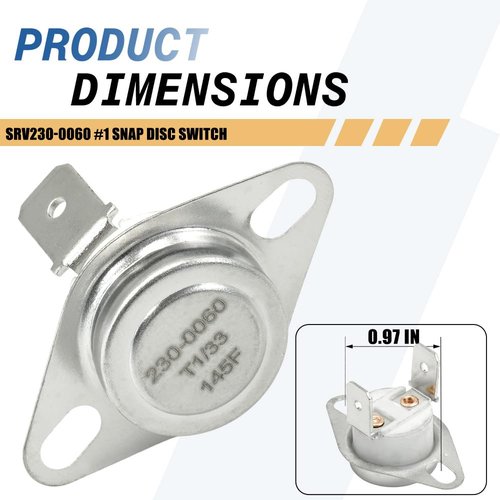

Package Dimensions: 1.7 x 1.7 x 0.9 inches
